Staged Parser Combinators in Scala: Have Your Cake and Eat It (Too)
Parser combinators have a reputation of poor performance—worst-case exponential time—and deemed good for prototyping but not for production. Or so the story goes. While techniques like Packrat parsing or static analysis offer linear-time guarantees by addressing naive backtracking, they come with their own trade-offs.
In this post, I want to explore an optimization route that complements the others: avoiding the performance penalty of abstraction.
By leaning into Scala 3’s metaprogramming capabilities, our combinators combine code fragments. By moving to a staged continuation-passing style (CPS) encoding, we make the control flow explicit and continuations are fully evaluated at compile time. The result is a parser that runs over 10x faster than a standard non-staged version. Interestingly, this approach is deeply rooted in program optimization history, closely mirroring the First Futamura Projection.
Multi-stage programming (MSP)
One of the novel features of Scala 3 was the redesign of metaprogramming, combining macros and staging. Multi-stage programming formalizes the idea of evaluating programs in distinct temporal phases or stages. By dividing program evaluation into stages we decide when computation happens—which in practical terms mean either at compile-time or runtime. To move across stages safely Scala enforces a strict phase distinction with quotations:
- Level 0: normal code execution.
- Level +1: code inside a quote
'{..}captures syntax—typed ASTs. - Level -1: code inside a splice
${..}drops down a level to be evaluated immediately.
Staging a program p of type A using a quote results in an unevaluated
expression of type Expr[A]. Conversely, splicing a staged expression e of
type Expr[A] evaluates it into code of type A. If a quote is well typed,
then the generated code is well typed.
Since quotes and splices shift exactly one level in opposite directions, they
exhibit a cancellation property: ${ '{e} } = e and '{ ${e} } = e. Because
the compiler tracks quotation levels (phase consistency), you can’t accidentally
use a runtime variable at compile time, so if your program compiles, it’s
well-staged.
Where do macros fit in? In Scala 3, a macro is simply an inline function
containing a top-level splice (${..}). The inline keyword forces compile-time
expansion, while the splice drops down a level to evaluate our staged
computation, injecting the resulting generated code into the program.
Instead of writing one massive, monolithic macro (which is how code generation usually feels), you build your final program by composing functions.
To see how this all comes together, we are going to stage a parser combinator library. The key insight is that while a library is generic, a specific grammar is typically known the moment a user compiles their program. By evaluating the static grammar at compile-time and quoting only the logic that depends on runtime input, we can transform a high-level recursive DSL into a specialized parser that eliminates the traditional overhead of abstraction in combinator libraries.
(Note: the Scala docs provide a much deeper and less rushed intro to MSP here.)
Parser combinators
Parser combinators are used to derive recursive descent parsers that are very
similar to the grammar of a language, and translating a grammar into a program
tends to be strikingly simple and mechanical. Consider, for example, an
s-expression grammar for strings like (a0(b1(c2(d3))e5)f6):
letter = "a" | ... | "z" | "A" | ... | "Z"
digit = "0" | ... | "9"
sexp = sym | seq
sym = letter (letter | digit)*
seq = "(" sexp* ")"
This EBNF grammar would loosely translate to the following Scala code:
enum Sexp:
case Sym(name: String)
case Seq(items: List[Sexp])
val letter = satisfy(c => (c >= 'a' && c <= 'z') || (c >= 'A' && c <= 'Z'))
val digit = satisfy(c => c >= '0' && c <= '9')
lazy val sexp: Parser[Sexp] = sym | seq
lazy val sym: Parser[Sexp] = (letter ~ (letter | digit).many).map(Sym(_))
lazy val seq: Parser[Sexp] = defer(sexp).many.between('(', ')').map(Seq(_))
Notice how closely the Scala code mirrors the BNF grammar. Together with
primitives like satisfy, you can build parsers for any context-free language
using mainly the combinators for sequential (~) and alternative (|) composition,
and a defer (or fix) combinator for recursion. Adding a few more common
combinators, we can define a small but powerful compositional DSL for parsing.
The combinator many is the counterpart for EBNF *. Later we develop a full-dress
library of combinators that covers many common needs.
Note that in a practical combinator library you’d want to restrict the grammar you accept to guarantee performance—such as enforcing left factoring or eliminating left-recursion.
Parsers of this kind usually have applicative structure (via the ~ and map above), and a monadic interface is also possible (Parsec-style) for context-sensitive parsing, but that extra power precludes static analysis—more on this later.
Staging a parser type from the ground up
Before we can even begin talking about staging a parser, we need to first agree on what we mean by a parser. Here’s a rhyme:
A Parser for Things
is a function from Strings
to Lists of Pairs
of Things and Strings!
If we translate it to Scala, we get a parser for ambiguous grammars:
trait Parser[A] extends (String => List[(A, String)]):
def parse(input: String): Option[A] =
this(input).collectFirst {
case (result, leftover) if leftover.isEmpty => result
}
this(input) returns a list of potential successes (handling ambiguity). Each
success is a pair: the parsed value A and the String that wasn’t consumed. With
collectFirst we find the first valid result, and if there’s none then we
return None.
However that is too general. It is safe to assume that most practical grammars are not inherently ambiguous and common data formats like JSON or TOML are designed to be unambiguous (and in fact LR(1) or LL(1)), so we can essentially remove the non-determinism:
trait Parser[A] extends (String => Option[(A, String)]):
def parse(input: String): Option[A] =
this(input).map(_._1)
But we still can do better. By returning Option[(A, String)] (a value
together with the leftover string), we are using String.substring(n)
internally, which means for every value parsed you are allocating a string
and increasing GC pressure unnecessarily.
trait Parser[A] extends ((String, Int) => Option[(A, Int)]):
def parse(input: String): Option[A] =
this(input, 0).map(_._1)
Users need precise feedback to fix their syntax errors, so an Option is kind of a non-starter. We will not develop further error reporting, but since now we have the current offset as part of the parser input, we can provide meaningful error messages (line+column) with some helpers.
case class ParseFailure(offset: Int)
type Result[A] = Either[ParseFailure, A]
trait Parser[A] extends ((String, Int) => Result[(A, Int)]):
def parse(input: String): Result[A] =
this(input, 0).map(_._1)
Ok, we are getting closed to a minimum viable parser. One final requirement is the ability to represent recursive grammars, like the s-expression we defined earlier:
lazy val sexp: Parser[Sexp] = sym | seq
lazy val seq: Parser[Sexp] = defer(sexp).many.between('(', ')').map(Seq(_))
Here we have a chicken-and-egg problem. The call to defer breaks that (we’ll
talk more about defer later).
Parallel to this, you can’t guarantee stack safety for complex, mutually recursive grammars—JVM does not support TCO or TCMC. We’ll use a trampoline to make sure both nesting and repetition work for arbitrarily deep (long) chains of characters:
import scala.util.control.TailCalls.TailRec
trait Parser[A] extends ((String, Int) => TailRec[Result[(A, Int)]]):
def parse(in: String): Result[A] =
this(in, 0).result.map(_._1)
And that was the last refinement, for our parser type. With this Parser definition we can build simple (non-staged) stackless parsers and combinators. A simple choice combinator would be defined as follows:
def |(that: Parser[A]): Parser[A] = (in, off) =>
this(in, off).flatMap {
case Right(v) => done(Right(v))
case Left(_) => that(in, off)
}
Now that we have a type that covers our bases, we switch our attention to metaprogramming. Staging a parser we can exploit the fact that the grammar is known at compile-time, and we can neatly separate the dynamic parts (the input string) from the static parts (the combinators), through quoting and splicing.
Staging the parser
We could straightforward lift the previous Parser into a staging lambda by
simply wrapping the inputs and outputs inside Exprs:
import scala.quoted.Expr
trait Parser[A] extends (
(Expr[String], Expr[Int]) => Expr[TailRec[Result[(A, Int)]]]
)
By doing this, we have essentially mutated the parser into a parser generator. Instead of parsing a string it writes the code that will parse a string. The choice operator now is a meta-choice combinator and has the following definition:
def |(that: Parser[A])(using Quotes): Parser[A] = (in, off) => '{
${ this(in, off) }.flatMap {
case Right(v) => done(Right(v))
case Left(_) => ${ that(in, off) }
}
}
Naively staging the parser buys us very little. In the | combinator, we
splice in ’this’ to generate an Expr[TailRec[Result]], but we still evaluate
it with .flatMap at runtime. Because the input string in is a runtime value,
and it is needed in order to pattern match the result, the entire body is
delayed to the runtime stage, completely wasting the fact that the structure of
the grammar rules are known statically. Even worse, the generated bytecode
balloons in size—a problem I’ll cover shortly.
Staging the control flow
To avoid that the entire expression becomes dynamic, we need to break this dependency. Instead of generating an Either that implicitly tells you what to do next, we could make the control flow explicit, by performing a CPS conversion. In CPS, a parser doesn’t return a value. Instead, it takes continuations:
type Res = TailRec[Unit]
type Succ[A] = (Expr[A], Expr[Int]) => Expr[Res]
type Fail = Expr[Int] => Expr[Res]
case class Cont[A](succ: Succ[A], fail: Fail)
trait Parser[A] extends ((Expr[String], Expr[Int], Cont[A]) => Expr[Res])
To encode the fact that a parser can fail, we provide two continuations: succ
and fail. On a staged parser continuations are compile-time functions, and so
they do not exist at runtime—unlike Either values. We maintain the trampoline
for stack safety. This is where the magic happens. The choice combinator for a
CPSed parser becomes:
def |(that: Parser[A])(using Quotes): Parser[A] =
(in, off, k) =>
this(in, off, Cont(k.succ, f1 =>
that(in, off, Cont(k.succ, f2 =>
k.fail('{
if $f1 > $f2 then
$f1
else $f2
}))
))
)
When a parser succeeds, it doesn’t wrap the result in an Either; it simply invokes k.succ, seamlessly embedding the AST of the next parser directly into the success path. And because every next parser does the exact same thing, you are essentially fusing the entire remaining grammar together.
Contrast this with (naive) unstaged parsers, where chains of combinators build deeply nested closure objects on the heap, together with all the other intermediate allocations needed at the boundaries, limiting parsing throughput. Multi-stage programming allows us to keep the abstraction and beauty of parser combinators, while pre-computing their structure at an earlier stage, generating code looking like a handwritten descent parser.
Context is King
One final (really) refinement. The Parser is a staging function and thus
most of our code will require a (using Quotes) to quote and splice
expressions. However, because our entire combinator DSL exclusively returns
Parsers, we can solve this be making Parser a context
function:
trait Gen[A] extends ((Expr[String], Expr[Int], Cont[A]) => Expr[Res])
type Parser[A] = Quotes ?=> Gen[A]
This has a cascading effect, since any grammar you define with the combinator library does not need to concern itself with a context parameter required for implementation reasons.
The elephant in the room
Because Expr represents an AST, if k.succ is a massive block of generated
code, the compiler literally duplicates that code into your program bytecode. If
your parser is nesting a few | and ~ combinators, your generated code grows
exponentially—until the JVM eventually refuses to compile it. This
particular problem can be mitigated with join points.
A join point is like a let-binding, basically you’d need to identify when you are duplicating a continuation, and instead insert a local function:
def |(that: Parser[A]): Parser[A] =
(in, off, k) => '{
def succ(res: A, next: Int) = ${ k.succ('res, 'next) }
${
val k2 = Cont((res: Expr[A], o) => '{ succ($res, $o) }, k.fail)
this(in, off, Cont(k2.succ, f1 =>
that(in, off, Cont(k2.succ, f2 =>
k2.fail('{ if $f1 > $f2 then $f1 else $f2 })
))
))
}
}
With this change, both branches generate a lightweight method call to succ rather than duplicating a potentially large AST. In a long chain of combinators, the JVM’s JIT compiler will easily inline these tiny delegate methods, meaning all branches likely point to a single shared continuation.
However, this is not ideal, muddling the combinator with the optimization. A deep embedding—representing the parser as a data structure rather than a function—would allow us to inspect the entire grammar before generation, and among other things, insert join points.
Ok, perhaps enough of beating around the bush. It’s time for some actual parsers.
Putting the “parser” in parser combinators
Surely we need a way to parse terminal symbols:
def string(s: String): Parser[String] =
(in, off, k) =>
'{
if ($in.startsWith(${ Expr(s) }, $off))
${ k.succ(Expr(s), '{ $off + ${ Expr(s.length) } }) }
else
${ k.fail(off) }
}
Because s is a compile-time value (Stage 0), we cannot reference it directly
inside the quote. Instead, we use Expr(s) to lift the literal string into a
syntax tree so we can safely splice it into the generated code.
Notice the careful management of staging boundaries. The conditional expression as a whole is quoted, forming the runtime structure. As mentioned earlier, by splicing the compile-time continuations we replace indirect jumps (closures) with direct jumps (branching)—unlocking further optimizations like speculative execution.
satisfy is another basic building block, here defined as an inline function
to hide staging from users—ideally a user should not need to quote anything:
inline def satisfy(inline f: Char => Boolean): Parser[Char] =
(in, off, k) =>
'{
if ($off < $in.length && f($in.charAt($off)))
${ k.succ('{ $in.charAt($off) }, '{ $off + 1 }) }
else
${ k.fail(off) }
}
inline def char(inline c: Char): Parser[Char] =
satisfy(_ == c)
inline def digit: Parser[Char] =
satisfy(c => c >= '0' && c <= '9')
Scannerless means dealing with whitespace:
def ws: Parser[Unit] =
(in, off, k) =>
'{
val n = $in.indexWhere(!_.isWhitespace, $off)
val next = if n == -1 then $in.length else n
${ k.succ('{ () }, 'next) }
}
A useful addition might be a staged parser reified from a direct-style parser—a sort of escape hatch:
inline def apply[A: Type](inline p: (String, Int) => Option[(A, Int)])
: Parser[A] =
(in, off, k) =>
'{
p($in, $off) match
case Some((a, next)) =>
${ k.succ('a, 'next) }
case None =>
${ k.fail(off) }
}
From this new factory method we can provide a regex parser:
import scala.util.matching.Regex
def regex(r: Regex): Parser[String] =
Parser { (in, off) =>
r.findPrefixMatchOf(in.substring(off))
.map(m => (m.matched, off + m.end))
}
This goes to show a library user does not need to worry about continuations. All that remains now is to define the main suite of combinators to build context-free grammars and the final plumbing to get a parser function from the macros. We will use a simple JSON parser as an example and run some benchmarks.
Staging the combinators
Following tradition, a natural fit for an applicative or monoidal-style combinator API would be to derive instances of Cats type classes. However, we would get stuck. The fundamental mismatch is staging: because we need to manipulate ASTs, we need a quotation context and type information made explicit to avoid type erasure across stages. The types simply do not align.
However, the parser combinator API we provide is almost standard, with mapping, sequence, choice, recursion and iteration as a separate combinator (fold)—we’ll see why later.
extension [A: Type](p: Parser[A])
inline def map[B: Type](inline f: A => B): Parser[B] =
(in, off, k) =>
p(in, off, Cont((a, next) => k.succ('{ f($a) }, next), k.fail))
Transforming parsed text into domain objects gives a functor.
inline def pure[A: Type](inline value: A): Parser[A] =
(_, off, k) => k.succ('{value}, off)
extension [A: Type](p: Parser[A])
def ~[B: Type](that: Parser[B]): Parser[(A, B)] =
(in, off, k) =>
p(in, off,
Cont((a, o1) =>
that(
in, o1,
Cont((b, o2) => k.succ('{ ($a, $b) }, o2), k.fail)
),
k.fail
)
)
def *>[B: Type](other: Parser[B]): Parser[B] =
(p ~ other).map(_._2)
def <*[B: Type](other: Parser[B]): Parser[A] =
(p ~ other).map(_._1)
Lifting a pure value and concatenation (~) forms an Applicative parser, with sequence left and right added for convenience, to define e.g. lexemes:
inline def lexeme[A](inline p: Parser[A]): Parser[A] = p <* ws
inline def tok(inline c: Char): Parser[Char] = lexeme(char(c))
inline def parens(inline p: Parser[A]): Parser[A] =
tok('(') *> lexeme(p) <* tok(')')
inline def empty[A: Type]: Parser[A] =
(_, off, k) => k.fail(off)
extension [A: Type](p: Parser[A])
def |(that: Parser[A]): Parser[A] =
(in, off, k) =>
p(in, off,
Cont(k.succ,
f1 =>
that(in, off,
Cont(k.succ,
f2 => k.fail('{ if $f1 > $f2 then $f1 else $f2 }))
))
)
By introducing a parser that fails (empty) and a choice operator (|), our parser
exhibits an Alternative (or MonoidK) structure. With choice we can define p?
which backtracks in case of failure:
extension [A: Type](p: Parser[A])
def ? : Parser[Option[A]] = p.map(Option(_)) | pure(None)
As useful these combinators are, they fail to to handle arbitrarily nested structures: parsers must be able to refer to themselves.
Recursion
We are going to implement recursive grammars with a fixed point operator. Staging Landin’s knot is perhaps the gnarliest bit of code to get right in the parser—or at least the one which gave me the most trouble.
def fix[A: Type](f: Parser[A] => Parser[A]): Parser[A] =
lazy val self: Parser[A] = (in, off, k) =>
f(self)(in, off, k)
self
Consider a simple nested brackets parser:
val arr: Parser[List[Any]] = fix { self =>
char('[') *> self <* char(']')
}
When the compiler evaluates arr, it calls fix(f), which returns the lazy self parser. To generate the final syntax tree, the compiler must expand self, which immediately triggers the evaluation of f. The compiler generates the AST for char(’[’), but then it encounters self in the sequence. Because the macro eagerly attempts to resolve the entire tree at compile-time, it expands self a second time. This blindly calls f again, generating another char(’[’), which hits self again…you get the idea.
Foolishly, we are asking the compiler to unroll a recursive grammar for a language that is potentially infinite into a flat, finite AST. We must stop the compiler from unrolling the grammar—of course the recursion has to happen at runtime.
But then we hit another problem: we need self to somehow honour its
continuations (Cont[A]). But these are not runtime closures, just syntax trees
holding the rest of the parser’s logic (like parsing the closing ]).
Thankfully staging allows us to move code from one stage to the next:
object Cont:
def apply[A: Type](k: Expr[((Any, Int) => Res, Int => Res)])(
using Quotes
): Cont[A] =
Cont(
(v, n) => '{ $k._1($v, $n) },
fOff => '{ $k._2($fOff) }
)
def lower[A: Type](k: Cont[A])(
using Quotes
): Expr[((Any, Int) => Res, Int => Res)] =
'{
(
(v: Any, n: Int) => ${ k.succ('{ v.asInstanceOf[A] }, 'n) },
(fOff: Int) => ${ k.fail('fOff) }
)
}
With Cont.lower acting as our bridge, we can finally introduce a boundary
between self generation and the runtime recursion:
def fix[A: Type](f: Parser[A] => Parser[A]): Parser[A] =
(in, off, k) =>
'{
def loop(o: Int, k: ((Any, Int) => Res, Int => Res)): Res = ${
val self: Parser[A] = (_, nOff, nK) =>
'{ tailcall(loop($nOff, ${ Cont.lower(nK) })) }
f(self)(in, 'o, Cont('k))
}
tailcall(loop($off, ${ Cont.lower(k) }))
}
Remember we previously defined type Res = TailRec[Unit], so continuations and
other functions perform stackless recursion. The loop method ties the knot
now, avoiding the trap, and self stages a loop iteration (with a tailcall
guard). The parser returned by fix jumpstarts the loop.
We can finally (finally!) derive defer, which gives us a lightweight syntax to
define recursive grammars, e.g.:
lazy val arr: Parser[List[Any]] = defer(char('[') *> arr <* char(']'))
def defer[A: Type](p: => Parser[A]): Parser[A] =
var ref: Parser[A] = null
(in, off, k) =>
if ref != null then ref(in, off, k)
else fix[A] { self =>
(i, o, nk) =>
ref = self
try
p(i, o, nk)
finally
ref = null
}.apply(in, off, k)
The ref variable, which is captured by the returned parser, ensures that we
run fix only once—otherwise we would get a new loop for every recursive
call—and defer is only called once by the lazy semantics. We reset ref
so that subsequent calls to the deferred parser (e.g. arr ~ arr) get their own
loops.
I think it’s worth to stress again that all of these runs at compile-time, i.e.
the ref and the try(-finally) block do not exist in the final parser—they’re
just scaffolding. Also, due the trampoline, the loop methods are indeed while
loops.
Repetition
Kleene star can be succintly defined via mutual recursion. However, fold (foldLeft) gives us an alternative route to define repetition (many) and some other specialized combinators with better performance that with a fixed point operator.
The basic idea is to use fold for things that grow horizontally (repetition) and fix for things that grow vertically (nesting).
For fix to do its magic, we had to stage the continuations. We had no control
over the continuations, because they are hidden in the function the user
supplies. Folding applies a known parser zero or more times and accumulates
the result.
extension [A: Type](p: Parser[A])
inline def fold[B: Type](inline b: B)(inline f: (B, A) => B): Parser[B] =
(in, off, k) =>
'{
def loop(cOff: Int, acc: B): Res = ${
p(in, 'cOff,
Cont(
(a, next) =>
'{
tailcall(loop($next, ${ Expr.betaReduce('{ f(acc, $a) }) }))
},
_ => k.succ('acc, 'cOff)
)
)
}
tailcall(loop($off, b))
}
Since we know what to do if the parser succeeds (try again!), we can inline the
continuation in p, makeing fold a while loop.
Repetition is perhaps the only operation where the trampoline is strictly needed for safety—note that in a CPS’d parser you do not return a value, so you can’t annotate the loop with @tailrec.
A rich DSL of iterative combinators can now be defined, in terms of fold:
extension [A: Type](p: Parser[A])
def many: Parser[List[A]] =
p.fold(List.empty[A])((acc, a) => a :: acc).map(_.reverse)
def many1: Parser[List[A]] =
(p ~ p.many).map(_ :: _)
def skipMany: Parser[Unit] =
p.fold(())((_, _) => ())
def skipMany1: Parser[Unit] =
p *> p.skipMany
def sepBy[B: Type](sep: Parser[B]): Parser[List[A]] =
sepBy1(sep) | pure(List.empty[A])
def sepBy1[B: Type](sep: Parser[B]): Parser[List[A]] =
(p ~ (sep *> p).many).map(_ :: _)
And from these the following looping parsers:
inline def takeWhile(inline f: Char => Boolean): Parser[String] =
satisfy(f).skipMany.string
inline def takeWhile1(inline f: Char => Boolean): Parser[String] =
satisfy(f).skipMany1.string
inline def takeUntil(c: Char): Parser[String] =
satisfy(_ != c).skipMany.string
inline def skipWhile(inline f: Char => Boolean): Parser[Unit] =
satisfy(f).skipMany
There is a little optimization here, where instead of calling many to get a
List[Char] and then call mkString, we use skipMany and then extract the
underlying matched sequence with this combinator:
extension [A: Type](p: Parser[A])
def string: Parser[String] =
(in, off, k) =>
p(in, off,
Cont(
(_, next) => k.succ('{ $in.substring($off, $next) }, next),
k.fail
)
)
We are now ready to take our parser combinators for a spin!
A JSON Parser
enum Json {
case JObject(fields: Map[String, Json])
case JArray(items: List[Json])
case JBoolean(value: Boolean)
case JString(value: String)
case JNumber(value: Double)
case JNull
}
val json: Parser[Json] = fix: self =>
import Json.*
val jNull = string("null").as(JNull)
val jBool =
(string("true").as(true) | string("false").as(false)).map(JBoolean(_))
val jStr = takeUntil('"').between('"', '"').map(JString(_))
val jNum = takeWhile1(c => c == '-' || c == '.' || c.isDigit).map(
_.toDouble
).map(JNumber(_))
val jArr = self.sepBy(tok(',')).between('[', ']').map(JArray(_))
val jObj = ((str <* tok(':')) ~ self).sepBy(tok(',')).between('{', '}')
.map(fs => Json.JObject(fs.toMap))
jNull | jBool | jNum | jStr | jArr | jObj
def impl(using Quotes): Expr[String => Either[ParseFailure, Json]] =
json.compileToExpr
inline def compiled: String => Option[Json] = ${ impl }
val parse: String => Option[Json] = compiled
val result = parse("""{"status": true}""")
println(result)

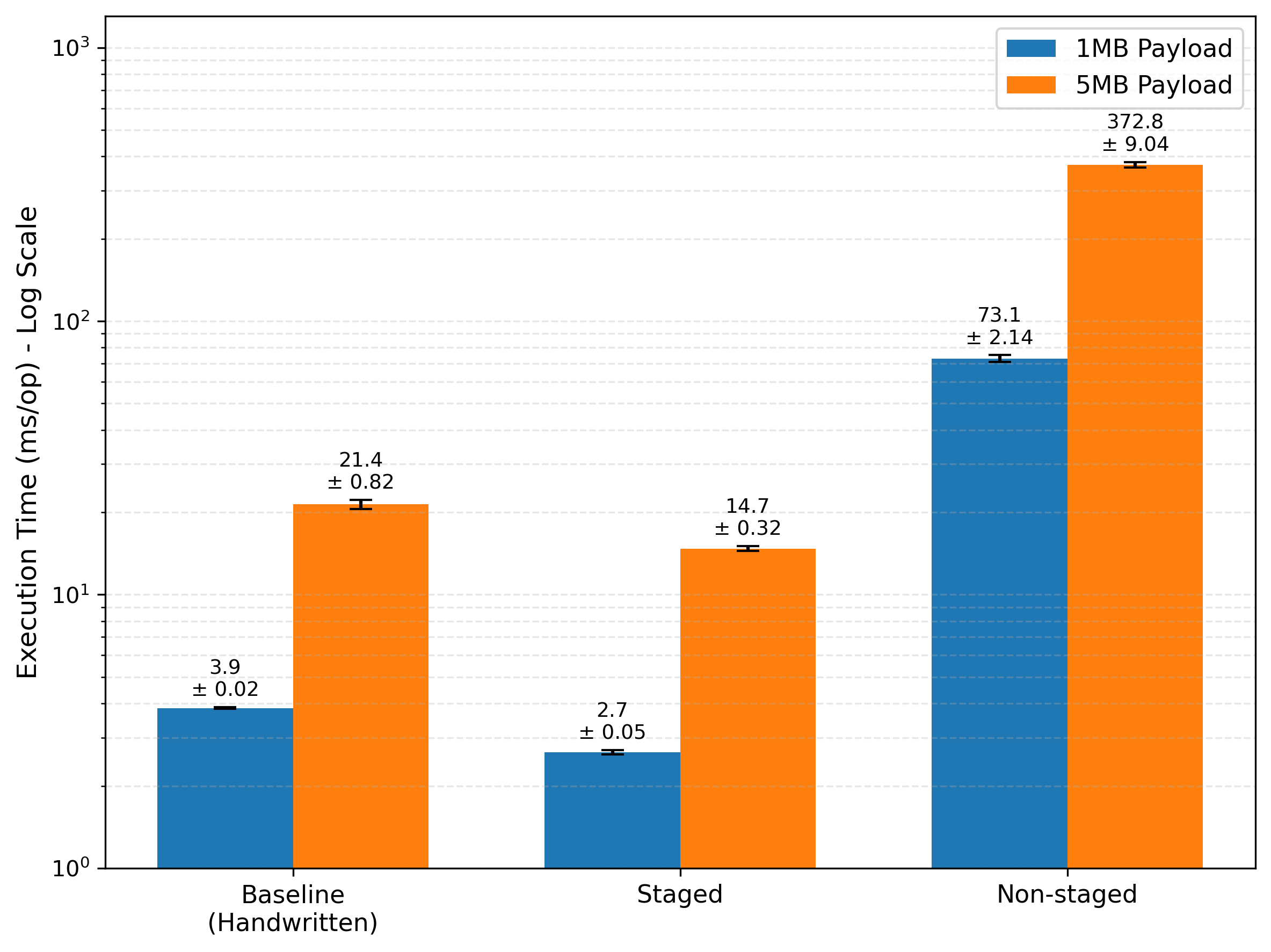

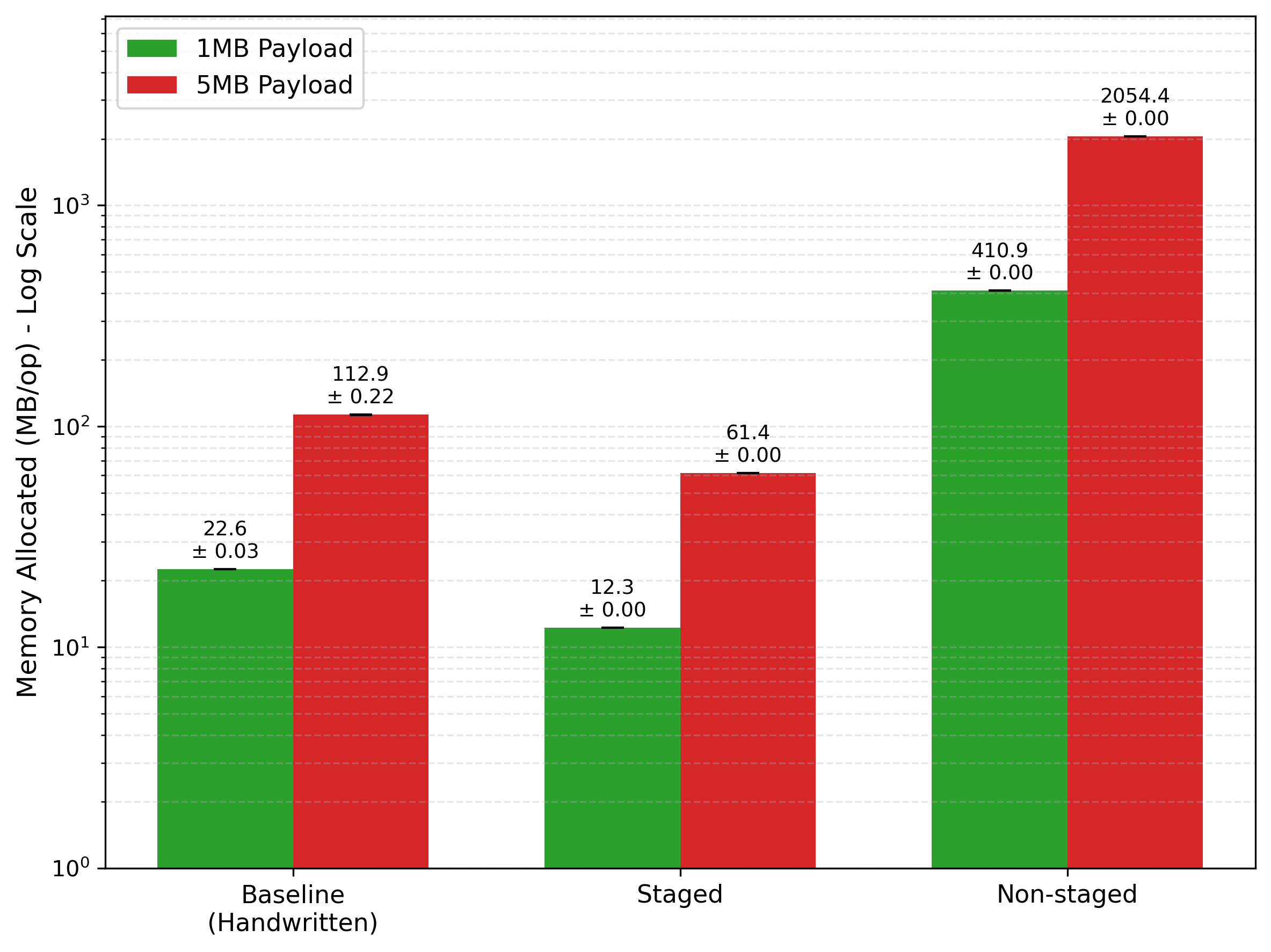

Benchamarks
Combining Scala 3 staging (metaprogramming) with trampolined continuations to build a stackless parser combinator library, we get both safety and high performance, without compromising the expressiveness of combinators.
val nested = "(" * 5000 + "foo" + ")" * 5000
assert(sexpParse(nested).isDefined)
#Programming #Performance #Scala #Parsing #Macros #Multi-Stage Programming #Partial Evaluation
