Cutting through the smog: making an air quality bot with Haskell

30 May, 2019

This tutorial was cross-posted to the LINE Engineering blog, here.

Long and (gasp!) short-term exposure to air pollution can result in significant health problems¹. When air quality is appallingly poor, you should refrain from doing any sort of physical activity outdoors. Poor air quality is unfortunately a common theme in Taipei over the winter. In very bad days, it is easy to tell—Taipei 101 nowhere to be seen—but oftentimes we just can’t tell. Can we then get somehow alerted when air quality is bad, without having to resort to looking at the 101?

In this tutorial, I want to show you how to build a chatbot in Haskell to do just that: help you to reduce your pollution intake. This tutorial assumes some familiarity with Haskell.

Why using a chatbot?

LINE has an impressive market penetration across the APAC region; in Taiwan, 86% of the population are monthly active users². Not surpringly, most of my online communication here in Taiwan is on LINE. Being an instant messaging service, the way to integrate 3rd party services with LINE, is through the use of chatbots. Chatbots are conversational tools that make it easy to automate tasks, from simple chores like translating messages, to scheduling meetings or do fact-checking.

So, whether you are part of a running club, or joined a local hiking community, having a chatbot informing everyone when the air is second-rate, sounds fitting.

We are going to be using the line-bot-sdk, a Haskell SDK for the LINE messaging platform. You can read an overview of the LINE Messaging API here.

This blog post was generated from literate Haskell sources. For those who prefer to read the code, an extraction version can be found here.

The line-bot-sdk uses the servant framework, a set of packages for declaring web APIs at the type-level. Here are the GHC language extensions we need for this example to work:

{-# LANGUAGE ApplicativeDo     #-}
{-# LANGUAGE DataKinds         #-}
{-# LANGUAGE FlexibleContexts  #-}
{-# LANGUAGE LambdaCase        #-}
{-# LANGUAGE NamedFieldPuns    #-}
{-# LANGUAGE OverloadedStrings #-}
{-# LANGUAGE QuasiQuotes       #-}
{-# LANGUAGE RecordWildCards   #-}
{-# LANGUAGE TypeOperators     #-}

Imports

import           Control.Concurrent.Lifted   (fork, threadDelay)
import           Control.Concurrent.STM.TVar (TVar, modifyTVar, newTVar,
                                              readTVar)
import           Control.Exception           (try)
import           Control.Monad               (forM, forM_, forever)
import           Control.Monad.IO.Class      (MonadIO, liftIO)
import           Control.Monad.Reader
import           Control.Monad.STM           (atomically, retry)
import           Control.Monad.Trans.Class   (lift)
import           Control.Monad.Trans.Control (MonadBaseControl)
import           Control.Monad.Trans.Maybe   (runMaybeT, MaybeT(..))
import           Data.Aeson
import           Data.Aeson.QQ               (aesonQQ)
import           Data.Aeson.Types
import           Data.Bifunctor
import           Data.List.Extra             (minimumOn)
import           Data.Maybe                  (catMaybes)
import           Data.String                 (fromString)
import           Data.Text                   (Text)
import qualified Data.Text                   as T
import qualified Data.Vector                 as V
import           Line.Bot.Client
import           Line.Bot.Types              as B
import           Line.Bot.Webhook            as W
import           Network.HTTP.Simple         hiding (Proxy)
import           Network.Wai.Handler.Warp    (runEnv)
import           Servant
import           Servant.Server              (Context ((:.), EmptyContext))
import           System.Environment          (getEnv)
import           Text.Read                   (readMaybe)

Parsing measurement data

The Taiwan’s Environmental Protection Administration monitors air pollution in major cities and counties across Taiwan. They have a public API with the latest registered air pollution:

curl https://opendata.epa.gov.tw/ws/Data/AQI/?\$format=json | jq .

[
  {
    "SiteName": "基隆",
    "County": "基隆市",
    "AQI": "40",
    "Pollutant": "",
    "Status": "良好",
    "SO2": "3.7",
    "CO": "0.24",
    "CO_8hr": "0.2",
    "O3": "44",
    "O3_8hr": "43",
    "PM10": "25",
    "PM2.5": "10",
    "NO2": "",
    "NOx": "",
    "NO": "",
    "WindSpeed": "1.1",
    "WindDirec": "90",
    "PublishTime": "2019-04-29 16:00",
    "PM2.5_AVG": "12",
    "PM10_AVG": "27",
    "SO2_AVG": "2",
    "Longitude": "121.760056",
    "Latitude": "25.129167"
  }
]

This API returns a JSON array with measured data from all the monitoring stations in Taiwan, typically updated every hour.

An AQI number under 100 signifies good or acceptable air quality, while a number over 100 is cause for concern. Among the reported pollutants there are particulate matter, ground level ozone, carbon monoxide and sulfur dioxide.

We will additionally need the location of the measurement, which we will use to find the closest available data to our users:

data AQData = AQData
    { aqi    :: Int
    , county :: Text
    , lat    :: Double
    , lng    :: Double
    , status :: Text
    , pm25   :: Int
    , pm10   :: Int
    , o3     :: Int
    , co     :: Double
    , so2    :: Double
    }
  deriving (Eq, Show)

However, first we need to do some data preprocessing:

note that all the JSON fields are strings, but our AQData type requires numeric values
there are some data points missing relevant details, such as the AQI or the location:

{
    "SiteName": "彰化(大城)",
    "County": "彰化縣",
    "AQI": "",
    "Pollutant": "",
    ...
}

So we need to remove such data points, since they amount to noise. One possible way to do this, is by wrapping [AQData] in a newtype:

newtype AQDataResult = AQDataResult { result :: [AQData] }

And then provide an instance of the FromJSON class to decode and filter bad values:

instance FromJSON AQDataResult where
  parseJSON = undefined

However, there is another possibility. FromJSON has another method we can implement:

parseJSONList :: Value -> Parser [a]

instance FromJSON AQData where
  parseJSONList = withArray "[AQData]" $ \arr ->
    catMaybes <$> forM (V.toList arr) parseAQData

  parseJSON _   = fail "not an array"

Array items go through parseAQData. Here the MaybeT monad transformer produces a value only if all items are present:

parseAQData :: Value -> Parser (Maybe AQData)
parseAQData = withObject "AQData" $ \o -> runMaybeT $ do
  aqi    <- MaybeT $ readMaybe <$> o .: "AQI"
  county <- lift   $               o .: "County"
  lat    <- MaybeT $ readMaybe <$> o .: "Latitude"
  lng    <- MaybeT $ readMaybe <$> o .: "Longitude"
  status <- lift   $               o .: "Status"
  pm25   <- MaybeT $ readMaybe <$> o .: "PM2.5"
  pm10   <- MaybeT $ readMaybe <$> o .: "PM10"
  o3     <- MaybeT $ readMaybe <$> o .: "O3"
  co     <- MaybeT $ readMaybe <$> o .: "CO"
  so2    <- MaybeT $ readMaybe <$> o .: "SO2"
  return AQData {..}

We then use catMaybes :: [Maybe a] -> [a] function to weed out the Nothings and return a list of AQData. Now that we have a FromJSON instance, we can write a client function to call this API:

getAQData :: IO [AQData]
getAQData = do
  eresponse <- try $ httpJSON opendata
  case eresponse of
    Left e -> do
      print (e :: HttpException)
      getAQData -- retry
    Right response -> return $ getResponseBody response
  where
    opendata = "https://opendata.epa.gov.tw/ws/Data/AQI?$format=json"

Here we only intercept exceptions of type HTTPException. For simplicity we just retry if the request fails, in practice you should inspect the error and implement retries with exponential backoff.

Distance between two geo points

We want our bot to notify users of unhealthy air in the regions where they live and work, so first we need to know which monitor is the closest to the users. For that, we will use the harvesine formula, which determines the great-circle distance between two points on a sphere given their longitudes and latitudes.

First let’s define a type alias for latitude/longitude pairs (in degrees):

type Coord = (Double, Double)

distRad :: Double -> Coord -> Coord -> Double
distRad radius (lat1, lng1) (lat2, lng2) = 2 * radius * asin (min 1.0 root)
  where
    hlat = hsin (lat2 - lat1)
    hlng = hsin (lng2 - lng1)
    root = sqrt (hlat + cos lat1 * cos lat2 * hlng)
    hsin = (^ 2) . sin . (/ 2) -- harvesine of an angle

distDeg :: Double -> Coord -> Coord -> Double
distDeg radius p1 p2 = distRad radius (deg2rad p1) (deg2rad p2)
  where
    d2r = (/ 180) . (* pi)
    deg2rad = bimap d2r d2r

distance :: Coord -> Coord -> Double
distance = distDeg 6371 -- mean earth radius

With distance we can calculate the distance in kilometers between any two given geo points. Now only reminds extract the air quality data point that is closest to a given location:

getCoord :: AQData -> Coord
getCoord AQData{..} = (lat, lng)

closestTo :: [AQData] -> Coord -> AQData
closestTo xs coord = (distance coord . getCoord) `minimumOn` xs

minimumOn :: Ord b => (a -> b) -> [a] -> a is defined in the package extra.

App environment

To use the Messaging API, you must create a channel. Most of the computations we are going to define require access to the channel token, for issuing requests to the LINE platform, and a channel secret, to keep your bot safe. We will put them in a shared environment:

data Env = Env
  { token  :: ChannelToken
  , secret :: ChannelSecret
  , users  :: TVar [(Source, Coord)]
  }

Additionally, we need the list of users, which are represented as (Source, Coord). Source is defined in Line.Bot.Webhook.Events and it contains the Id of the user, group or room where push messages will be sent.

We need to synchronize access to the users list, since it will be concurrently read and updated from separate threads, and so we place it in a transactional variable, Control.Concurrent.STM.TVar, from the stm package, which provides synchronization primitives for running actions atomically.

Handling webhook events

In order to interact with users, we will register a webhook URL with the channel. Events like user messages or joining a chatroom, will be send to our server via HTTP. Here we are interested in three types of events (other events are just ignored):

when our bot is added as a friend (or unblocked)
joins a group or room
receives a location message from a user

For the remaining of the tutorial, we will use mtl type classes³ for modularity. The main type classes we need are MonadIO, for actions where IO computations can be embedded, and MonadReader for functions that access the shared environment Env.

webhook :: (MonadReader Env m, MonadIO m) => [Event] -> m NoContent
webhook events = do
  forM_ events $ \case
    EventFollow  {..} -> askLoc replyToken
    EventJoin    {..} -> askLoc replyToken
    EventMessage { message = W.MessageLocation {..}
                 , source
                 }    -> addUser source (latitude, longitude)
    _                 -> return ()
  return NoContent

For the first two events, EventFollow and EventJoin, we reply with a text message that contains a quick reply button, with a location action: this allows the users to easily share their location for air monitoring.

There are also dual events, EventUnfollow and EventLeave that we omit but you should probably handle.

We are using Line.Bot.Types.ReplyToken, which is included in events that can be replied:

replyMessage :: ReplyToken -> [Message] -> Line NoContent

Line is the monad to send requests to the LINE bot platform.

askLoc :: (MonadReader Env m, MonadIO m) => ReplyToken -> m ()
askLoc rt = do
  Env {token} <- ask
  _ <- liftIO $ runLine comp token
  return ()
    where
      welcome = "Where are you?"
      qr      = QuickReply [QuickReplyButton Nothing (ActionLocation "location")]
      comp    = replyMessage rt [B.MessageText welcome (Just qr)]

MessageText is a data constructor from Line.Bot.Types.Message. All messages can be sent with an optional QuickReply; Quick replies allow users to select from a predefined set of possible replies, see here for more details on using quick replies.

Finally runLine runs the given request with the channel token from the environment⁴:

runLine :: Line a -> ChannelToken -> IO (Either ClientError a)

Once we receive a location message event, handled in the equation for EventMessage, we add the user and her location to the shared list of users:

addUser :: (MonadReader Env m, MonadIO m) => Source -> Coord -> m ()
addUser source coord = do
  Env {users} <- ask
  liftIO $ atomically $ modifyTVar users ((source, coord) :)
  return ()

We add the source of the event, so if the message was sent from a group, we will notify the group, not the user who shared the location.

Serving the webhook: WAI application

To serve our webhook API we need to produce a WAI app.

The line-bot-sdk exports a type synonym defined in Line.Bot.Webhook that encodes the LINE webhook API:

newtype Events :: Events { events :: [Event] }
type Webhook = LineReqBody '[JSON] Events :> Post '[JSON] NoContent

The LineReqBody combinator will validate that incoming requests originate from the LINE platform.

aqServer :: ServerT Webhook (ReaderT Env Handler)
aqServer = webhook . events

Servant handlers run by default in the Handler monad. In order to let our webhook handler to read the environment Env (which is enforced by the type constraint in webhook) we are going to stack the Reader monad.

It is beyond the scope of this tutorial to cover the type wizardry of the Servant web framework, which is done rather nicely in the servant tutorials.

api = Proxy :: Proxy Webhook
ctx = Proxy :: Proxy '[ChannelSecret]

app :: MonadReader Env m => m Application
app = ask >>= \env ->
  let server = hoistServerWithContext api ctx (`runReaderT` env) aqServer
  in  return $ serveWithContext api (secret env :. EmptyContext) server

The final step is to turn our aqServer into a WAI Application.

Servant allows to pass values to combinators by using a Context. The LineReqBody combinator requires a Context with the channel secret. This is enforced by the type-level list '[ChannelSecret].

Periodic updates

We previously defined getAQData, which is an IO action that returns the list of (valid) data points. Our goal now is to call this API every hour to get the latest measured data and map it to our users, based on the location:

processAQData :: (MonadReader Env m, MonadIO m) => m ()
processAQData = do
  Env {users, token} <- ask
  users' <- liftIO $ atomically $ do
    xs <- readTVar users
    case xs of
      [] -> retry
      _  -> return xs
  liftIO $ getAQData >>= \aqData ->
    let users'' = [(user, aqData `closestTo` coord) | (user, coord) <- users']
    in  forM_ users'' $ flip runLine token . notifyChat
  return ()

processAQData does serveral things⁵:

read the list stored in the transactional variable users in the environment: if the list is empty, retry, blocking the thread until users are added
call getAQData to get the most recently available air quality data
we then run a list comprehension where we map each user, of type (Source, Coord) to (Source, AQData)
for each user, call notifyChat

notifyChat :: (Source, AQData) -> Line NoContent
notifyChat (Source a, x)
  | unhealthy x = pushMessage a [mkMessage x]
  | otherwise   = return NoContent

To alert users, we will push messages to those users whose closest monitoring station reports an AQI over 100:

unhealthy :: AQData -> Bool
unhealthy AQData{..} = aqi > 100

processAQData needs to be called periodically, at least once every hour. We will run it in a separate thread, so that it runs concurrently with our webhook server:

loop :: (MonadReader Env m, MonadIO m, MonadBaseControl IO m) => m ()
loop = do
  fork $ forever $ do
    processAQData
    threadDelay (3600 * 10^6)
  return ()

Air quality alerts

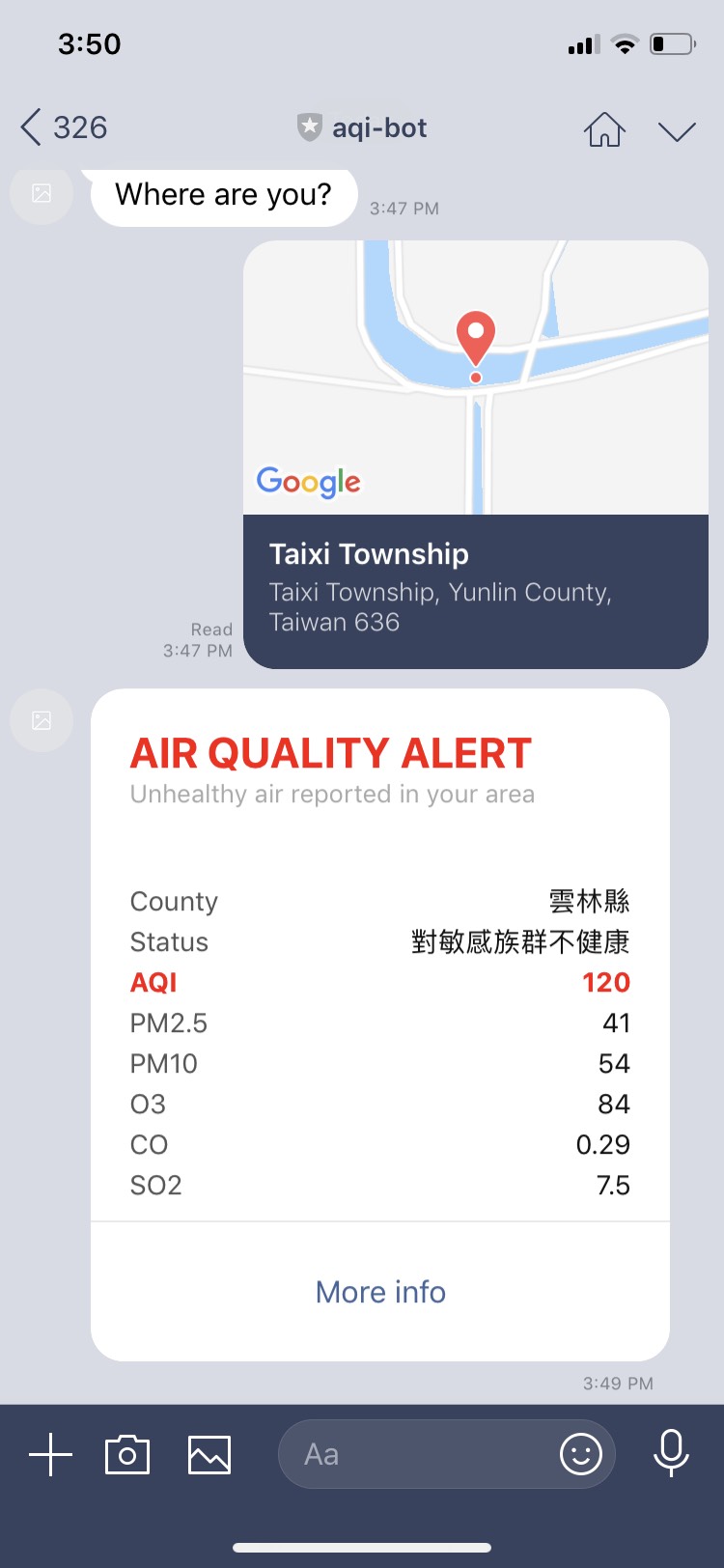

To inform users of pollution levels, we will use a Flex Message, which are messages with customizable layouts written in JSON format.

mkMessage :: AQData -> B.Message
mkMessage x = B.MessageFlex "air quality alert!" (flexContent x) Nothing

A Flex message is constructed from an alternative text (for clients not supporting the feature), a Data.Aeson.Value which contains the message layout and content, and an optional quick reply:

MessageFlex :: Text -> Value -> Maybe QuickReply -> Message

To design the layout of the alert message we used the Flex Message Simulator. We will use the JSON quasiquoter aesonQQ, which converts (at compile time) a string representation of a JSON value into a Value:

JSON Flex message

flexContent :: AQData -> Value
flexContent AQData{..} = [aesonQQ|
  {
    "type": "bubble",
    "styles": {
      "footer": {
        "separator": true
      }
    },
    "header": {
      "type": "box",
      "layout": "vertical",
      "contents": [
        {
          "type": "text",
          "text": "AIR QUALITY ALERT",
          "weight": "bold",
          "size": "xl",
          "color": "#ff0000",
          "margin": "md"
        },
        {
          "type": "text",
          "text": "Unhealthy air reported in your area",
          "size": "xs",
          "color": "#aaaaaa",
          "wrap": true
        }
      ]
    },
    "body": {
      "type": "box",
      "layout": "vertical",
      "contents": [
        {
          "type": "box",
          "layout": "vertical",
          "margin": "xxl",
          "spacing": "sm",
          "contents": [
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "County",
                  "size": "sm",
                  "color": "#555555",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{county},
                  "size": "sm",
                  "color": "#111111",
                  "align": "end"
                }
              ]
            },
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "Status",
                  "size": "sm",
                  "color": "#555555",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{status},
                  "size": "sm",
                  "color": "#111111",
                  "align": "end"
                }
              ]
            },
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "AQI",
                  "weight": "bold",
                  "size": "sm",
                  "color": "#ff0000",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{show aqi},
                  "weight": "bold",
                  "size": "sm",
                  "color": "#ff0000",
                  "align": "end"
                }
              ]
            },
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "PM2.5",
                  "size": "sm",
                  "color": "#555555",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{show pm25},
                  "size": "sm",
                  "color": "#111111",
                  "align": "end"
                }
              ]
            },
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "PM10",
                  "size": "sm",
                  "color": "#555555",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{show pm10},
                  "size": "sm",
                  "color": "#111111",
                  "align": "end"
                }
              ]
            },
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "O3",
                  "size": "sm",
                  "color": "#555555",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{show o3},
                  "size": "sm",
                  "color": "#111111",
                  "align": "end"
                }
              ]
            },
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "CO",
                  "size": "sm",
                  "color": "#555555",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{show co},
                  "size": "sm",
                  "color": "#111111",
                  "align": "end"
                }
              ]
            },
            {
              "type": "box",
              "layout": "horizontal",
              "contents": [
                {
                  "type": "text",
                  "text": "SO2",
                  "size": "sm",
                  "color": "#555555",
                  "flex": 0
                },
                {
                  "type": "text",
                  "text": #{show so2},
                  "size": "sm",
                  "color": "#111111",
                  "align": "end"
                }
              ]
            }
          ]
        }
      ]
    },
    "footer": {
      "type": "box",
      "layout": "horizontal",
      "contents": [
        {
          "type": "button",
          "action": {
            "type": "uri",
            "label": "More info",
            "uri": "https://www.epa.gov.tw/"
          }
        }
      ]
    }
  }
|] ```

Putting it all together

We are almost done! The only remaining part is to run our server and main loop:

We read from the environment the channel token and secret
create an initial Env.
thread the inital environment to our app and loop.
call Network.Wai.Handler.Warp.run to run the webhook in port 3000

main :: IO ()
main = do
  token  <- fromString <$> getEnv "CHANNEL_TOKEN"
  secret <- fromString <$> getEnv "CHANNEL_SECRET"
  env    <- atomically $ Env token secret <$> newTVar []
  runReaderT loop env
  run 3000 $ runReader app env

Here you can see we are actually instantiating loop and app to concrete monads.

Wanna be friends?

If you live in Taiwan, you can follow this bot server and see how it works:

It’s the same bot as we have detailed in the tutorial with the exception that it uses PostGIS instead of the in-memory solution we proposed earlier. You can find the repository for the code here: https://github.com/moleike/taiwan-aqi-bot

Conclusion

In this tutorial we have covered the development of a simple but practical chatbot. I hope you enjoyed reading (and perhaps coding along) and maybe help you getting started with your own chatbot ideas!

Updates: reworded almost all sections, added additional links.

https://www.eea.europa.eu/en/topics/in-depth/air-pollution/eow-it-affects-our-health ↩︎
https://www.infocubic.co.jp/en/blog/taiwan/how-to-win-the-hearts-and-trust-of-taiwanese-consumers/ ↩︎
The so-called mtl-style programming ↩︎
Note that in order to keep this tutorial concise, we are not checking for possible errors, but you should pattern match the result of runLine. Line has an instance of MonadError ClientError so you can catch errors there, too. ↩︎
The naive solution we are building here to associate users to monitoring stations would be impractical for a real application, where it would make more sense to filter out those data points where pollution is of concern, and then for each data point retrieve all users that are within a given distance e.g. using a geospatial index, and notify them with multicast messages. ↩︎

#Haskell #Taiwan #Chatbots #Tutorial
